Böllhoff is a competence leader in 360° Joining Technology. Family-run since 1877, the company has since stood for long-term success through innovative capacity and local presence. Böllhoff seeks to understand the needs of its customers and deliver solutions to fit their requirements. The company focuses on innovative, sustainable and economical solutions along its customers’ entire value chain. Böllhoff Automation GmbH is part of the Böllhoff Group and develops assembly solutions for the automated setting of self-piercing rivets (RIVSET®) as well as solutions for RIVKLE® blind rivet nuts and studs. The new HMI combines flexibility with intuitive, safe operation through a user-centred operating concept – delivering consistent, efficient and error-free use in everyday production through a modern look and feel. The new HMI was implemented using HELIO, the industrial HMI software we developed for creating intuitive, web-based user interfaces.
- Client
- Böllhoff Automation GmbH
- Industry
- Joining Technology
- Task
- Development of an intuitive HMI, a HELIO theme, and custom elements, implemented by the Böllhoff Group with HELIO
- Our services
- HELIO Theme, User Experience, Interfacedesign, Infographics

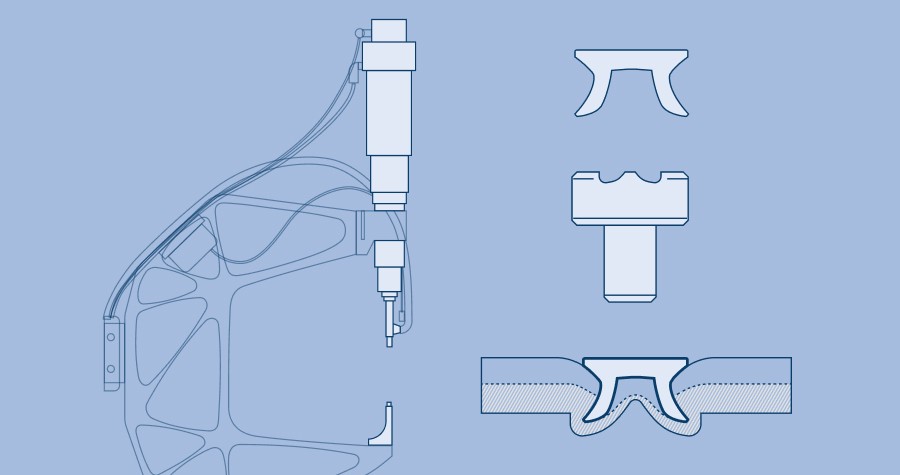

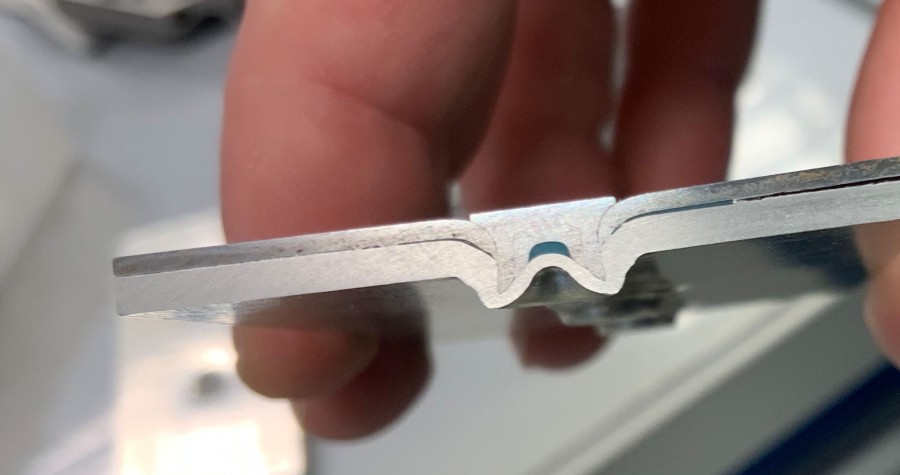

Smart Interface for Precise Riveting Processes

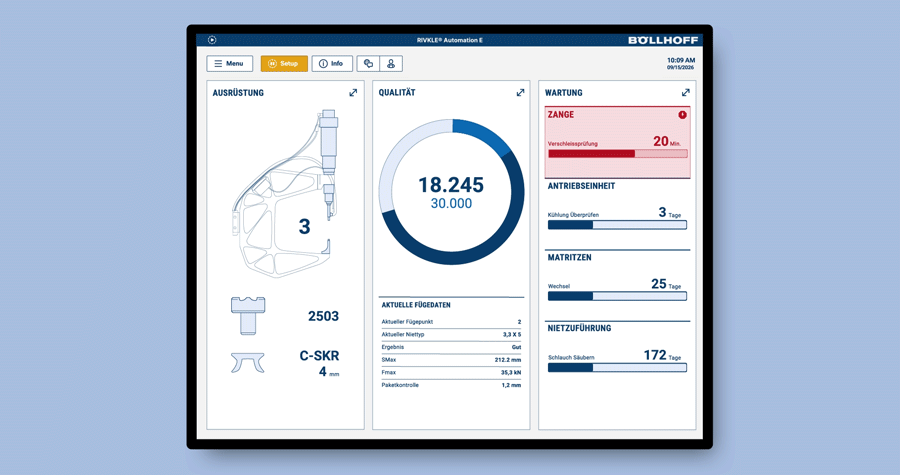

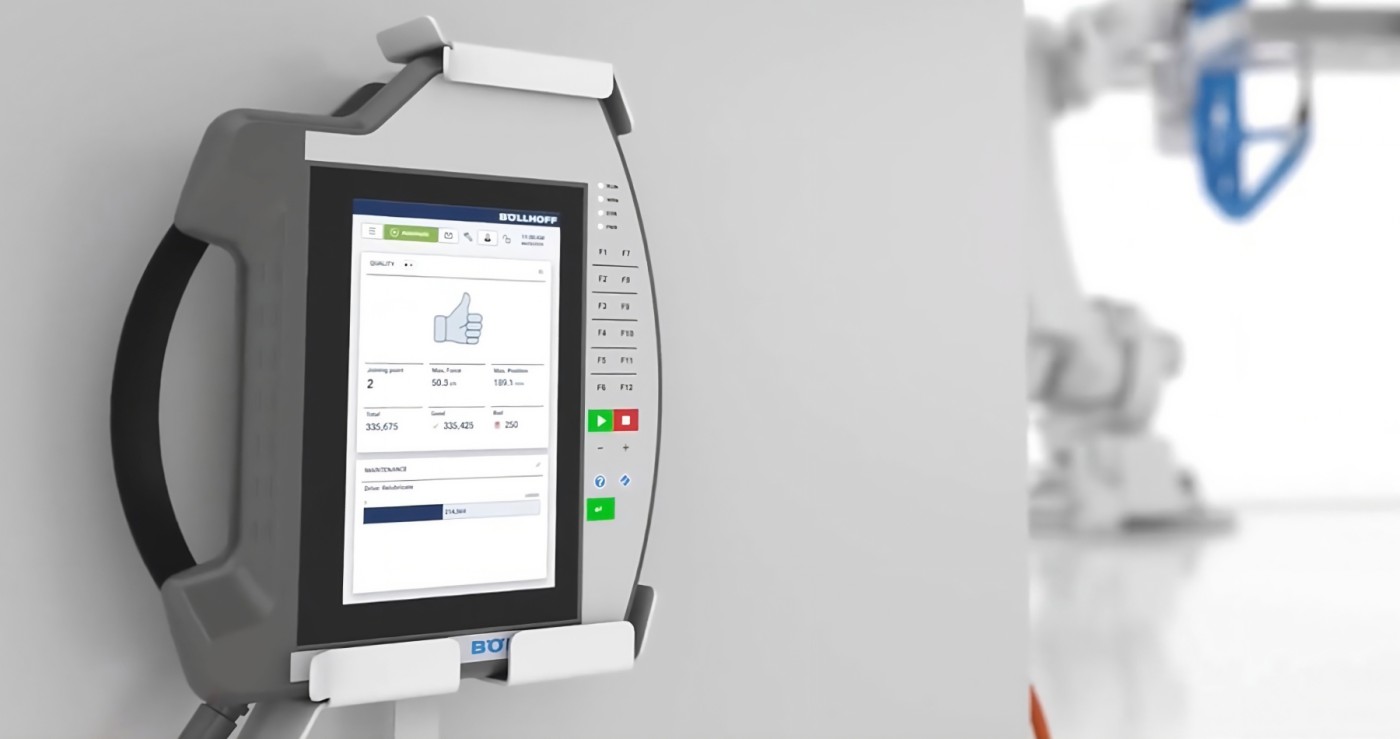

To provide an overview during operation, a dynamic dashboard was designed that displays relevant statuses, positions, and key metrics at a glance at any time. Custom workflows were developed for the tablet application to support both commissioning and production-related teaching processes, ensuring the system is quickly and precisely prepared for mass production. This allows users to maintain an overview in every situation and focus on what matters most. The workflows guide them reliably through each step and ensure that the system is ready for series production.
Spline Points and Envelopes – Customized with the SDK

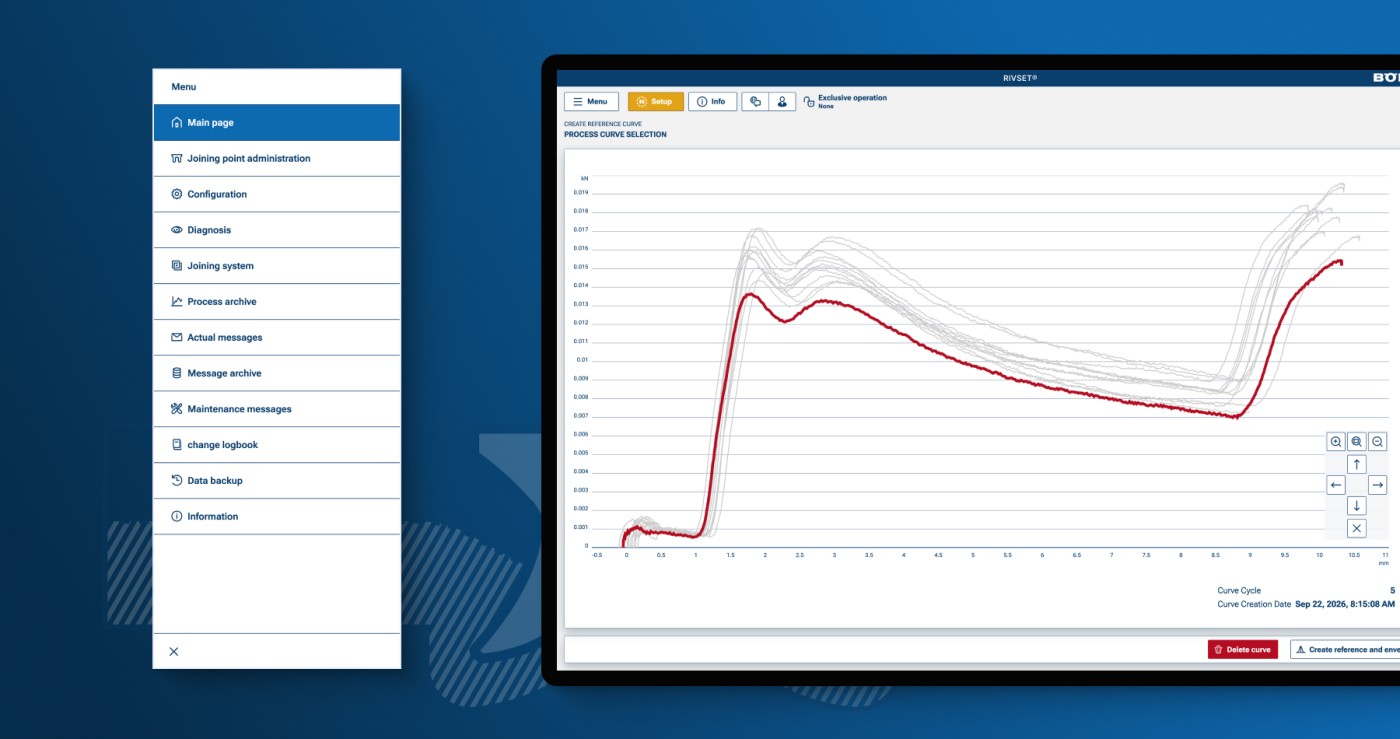

A key element is joint point management. A control specifically tailored to this use case was designed to display the force-displacement curve and developed using the corresponding SDK. Using the HELIO SDK (Software Development Kit), it is possible to extend HELIO with custom controls, actions, and icons. These can be configured and edited just like standard components. In this project, this led to the creation of the control for the force-displacement curves, including zoom, analysis windows, and process data display. It integrates seamlessly into the existing design system and optimally meets all user interface requirements.
"HELIO allows us to quickly and flexibly adapt user interfaces to specific applications. Our in-house force-displacement diagram is seamlessly integrated as a HELIO element via the SDK. The direct communication with the team is particularly valuable to us—it saves us a significant amount of time."
Christian Friesen, Böllhoff Automation GmbH
Corporate Design Meets the HELIO Theme
With HELIO, user interfaces can be designed exactly according to your specifications or corporate identity guidelines. Through our design services and integration with Figma, professional themes can be implemented pixel-perfect without having to compromise on design. The responsive design system developed for Böllhoff is fully aligned with the corporate design and ensures a consistent appearance across all devices. A high-contrast, minimalist skin highlights data visualizations and key KPIs. Custom illustrations and icons complement the interface.
